Pres de gravat- seria JPVE,JWE

Presele pentru gravura ale seriei JPV si JPVE sunt concepute pentru lucrul la dimensiuni mari, spre exemplu ateliere de gravura specializate. Un volan greu actioneaza cilindrul inferior printr-o cutie de viteza.

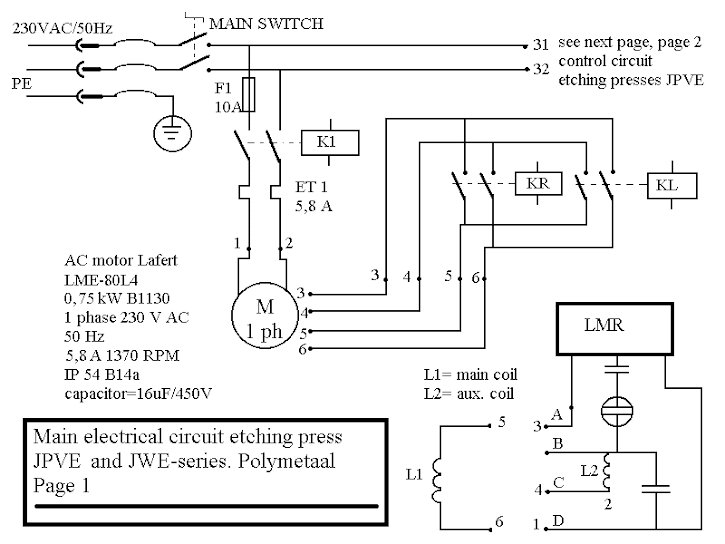

Schema Electrica

schema electrica

Schema de comanda

schema de comanda

Parti componente

Quantity Description Manufacturer Type number
1 Steel switch box Taunus EE244
1 Main switch Bremas CQ0160003KN6
1 Safety transformer EREA E224 SC160
2 Insert relais Omron MY4 24VDC
2 relais foot Omron PYC-PZ
2 Photo-electric sensors Telemecanique XU1-B18PP340
2 rectangular adaptors for sensors Telemecanique XUB-Z01
20 mtr. electric cable Alcatel RWPK/RMrL
5 mtr. electric wire Draka VDS 1,5/1mm2
30 electric connectors Weidmuller SAK 2,5
60 wire end sleeves Weidmuller Div.
0,5 mtr. DIN-rail Weidmuller
20 cable connectors AMP div.
2 glass fuse container Weber 6 x 30mm
2 Micro-switch Telemecanique XCK-M121
1 Electric motor 1 phase Lafert LME-80L4 1500 r.p.m 0,75 kW
